An aluminium-edged version of the soft package family. The slim metal frame protects corners in traffic areas and gives the panel a crisp shadow-gap junction — a frequent choice for offices and education.
| Property | Value |
|---|---|
| Structure | Fabric + acoustic cotton panel + aluminium frame |
| Core | Yellow cotton / water-repellent formaldehyde-free white glass wool / Owens Corning cotton |
| Density | 48 / 64 / 80 / 96 kg/m³ |
| Width | 600 / 1200 mm |
| Length | 600 / 1200 / 2400 mm |
| Thickness | 25 / 50 / 100 mm (custom sizes available) |

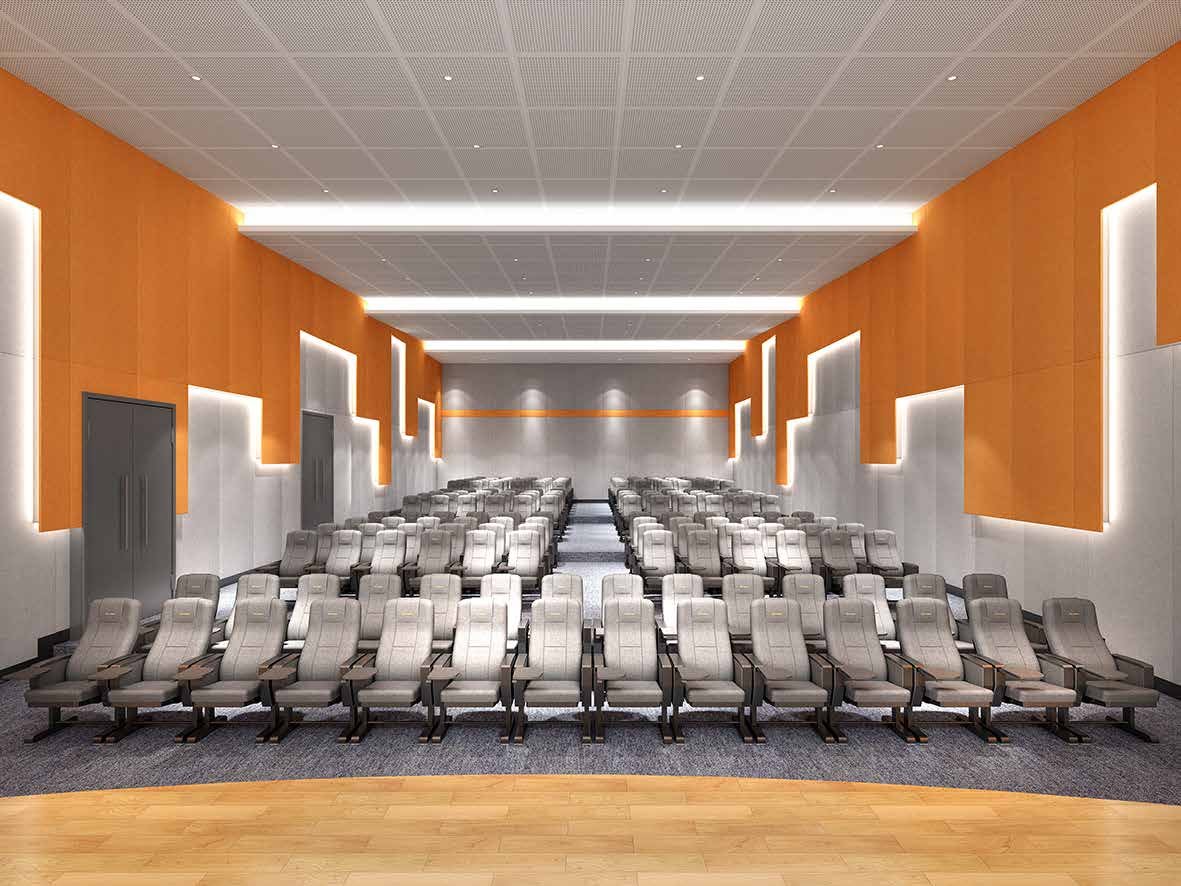

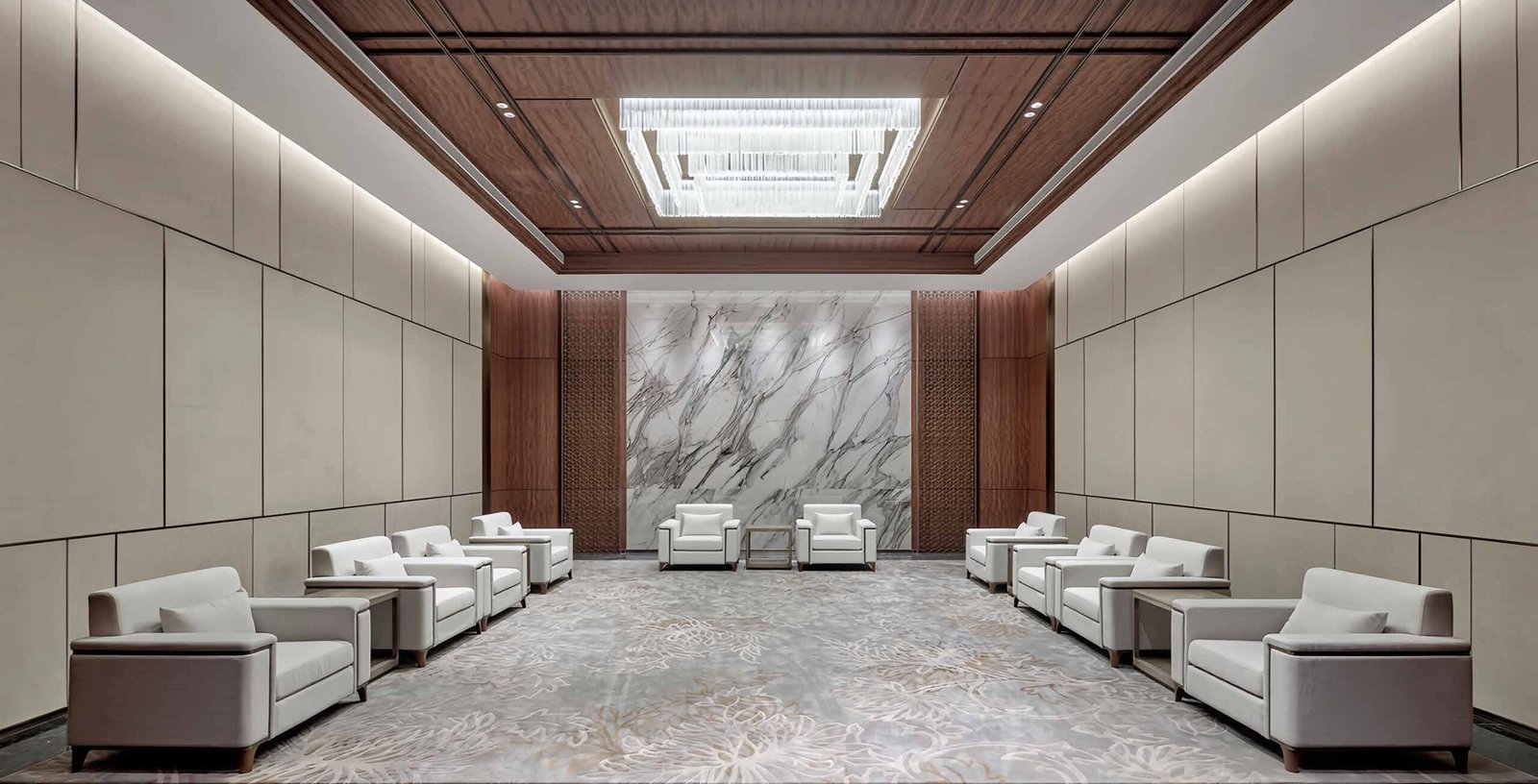

Offices, schools, libraries, corridors and public circulation areas.
| Item | Detail |
|---|---|
| Minimum order quantity | 200 m² |
| Production lead time | 15–25 working days from order confirmation |
| Packaging | 8 panels per carton, corner-protected |
| Container loading | 20′ GP ≈ 1,200 m² |
| Terms | EXW Shanghai · FOB Shanghai · CIF on request |
| Payment | 30% deposit with order, balance against B/L copy by T/T; L/C at sight on request |
Component test reports are issued to our manufacturing partners rather than to MST. Authorised copies, including laboratory and certificate numbers, are released with every quotation.
A fabric swatch card covering all standard weaves, plus a full-size panel corner sample, is posted free of charge within 7 working days.
Email your drawing, panel schedule or a square-metre count to sales@mstacoustics.com, or send the enquiry form on this page. We reply within one working day with pricing, lead time and freight options. Datasheets, colour charts and installation guides are collected in our technical resources library.
Which frame colour is available?
Standard silver and black anodised; RAL powder-coat on request.
Can the panels be demounted and reused?
Aluminium-framed panels can be unclipped and re-hung — useful for fit-out changes.
Do you make pinboard versions?
Yes — the textile finish is push-pin tackable.
